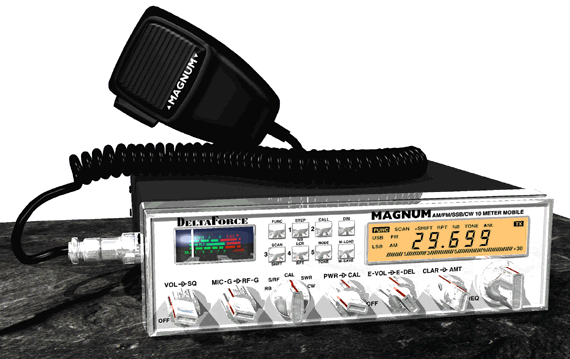

ENERAL SPECIFICATIONS
|
|
TRANSMITTER
SPECIFICATIONS
|
| Frequency
Coverage............ |
28.000
- 29.699 MHz
|
|
Frequency
Response........... |
450
- 3500 Hz |
| RF
Power Output.................. |
30
Watts PEP |
|
Frequency
Tolerance........... |
0.0005% |
| Modes................................... |
AM,
FM, USB, LSB, CW |
|
Frequency
Accuracy........... |
+10
ppm or better |
| Tuning
Steps......................... |
1
kHz, 10 kHz or 100 kHz |
|
Carrier
Suppression............. |
-40
dB or better |
| Memory
Channels................. |
5
Channels |
|
Unwanted
Sideband............. |
-50
dB or better (1 kHz tone) |
| Antenna
Impedance.............. |
50
ohms, unbalanced |
|
Spurious
Emission................ |
-60
dB or better |
| Power
Requirement.............. |
12
- 16 Volt DC |
|
FM
Deviation......................... |
+/-2
kHz |
| Dimensions........................... |
2.4(H)
x 7.9(W) x 9.3(D) in |
|
Current
Consumption............ |
6.5
amps at max. output |
| Weight
(approx.)................... |
4
lbs. |
|
Microphone
Impedance......... |
600
ohms, dynamic |
|
FEATURES |
|
RECEIVER
SPECIFICATIONS
|
| Microprocessor
Controlled |
|
Circuit
Type........................... |
Superheterodyne,
Dual Conversion |
| Variable
RF Output Power |
| 5
Digit LCD Frequency Display |
|
Intermediate
Frequencies..... |
1st
: 10.695 MHz
2nd : 455 kHz
SSB : 10.695 MHz |
| S/RF
and SWR Meter |
| LCD
Peak Reading RF Meter |
| Noise
Blanker |
|
Sensitivity
(10 dB S+N/N)..... |
SSB
/ CW / FM : 0.25µV
AM : 0.5µV |
| Automatic
Noise Limiter |
| Frequency
Scan |
|
| Last
Channel Recall |
Selectivity............................. |
AM
/ FM : 6.0 kHz (-6 dB)
AM / FM : 18 kHz (-60 dB)
SSB / CW : 4.2 kHz (-6 dB)
SSB / CW : 7 kHz (-60 dB) |
| Automatic
Call Frequency Control (FM 29.600 MHz) |
| Receive
Audio Tone Control |
| Scanning
Microphone |
|
RIT
Variable Range............... |
+/-1.5
kHz |
| Offset
(Split) Frequencies |
|
Squelch
Range..................... |
0.6µV
to 1mV |
| Night
Illuminated Display with Dimmer Contro |
|
Rejection.................... |
70
dB or better |
| 1
Year Warranty |
|
Adjacent
Channel Rejection.. |
AM
/ FM : 60 dB
SSB / CW : 70 dB |
| MARS
and CAP Capable (permits required) |
| Extended
Service Contracts Available |
|
Audio
Output Power............. |
3.0
watts into 8 ohms |
| Magnum |
|
THD....................................... |
5%
or better at 500mW |
| |
Current
Consumption............ |
1.0
amp at max. output |
