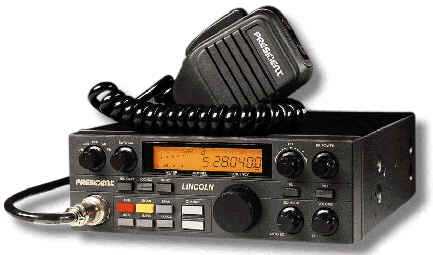

LINCOLN |
DISCONTINUED
NO STOCK
|
|
|
|
|
 |
| CONTROLS and FUNCTIONS |
- Channel selector. Manual or Electronic up and down keys.
- Frequency tuning.
- Volume with power ON/OFF control.
- Squelch.
- LCD display w/ (RX/TX, mode, SWR, S/RF, Frequency, channel,
band).
- Jack for external speaker,PA , CW key.
- Frequency lock
- Loc/DX Selector.
- Mode Selector
- Span / VFO
- Scan function.
- RF power.
- Mic gain.
- NB/ANL switch.
- Roger beep switch.
- Clarifier/RIT Control
- SWR calibration knob.
- Dimmer key.
- Band Selector. A/B/C/D
- TX/RX indicator
- SIZE (mm): 185 Width. 60 Height. 250 Depth.
- SIZE (Inches) 7.4" Width x 2.4" Height x 9.8"
Depth
- Weight 4.4 lbs
|
| Specifications |
- Frequency Range 28.00 MHz - 29.700 MHz
- Power Output 10W AM/FM/CWS - 21W USB / LSB
- Minimum Power Requirements 13.2 Volts
- Antenna Impedance 50 ohms
- Adjacent Channel Rejection 70db
- Sensitivity for 20dB Sinad : .5uV - 113 dB (AM/FM)
- Sensitivity for 20dB Sinad : .4uV - 115 dB (SSB)
- Transmit Final : One MRF455 ( High Power Output)
- Accessories Include : Microphone w/Up-Down Buttons, Power Cord,
Microphone Hanger, Radio Bracket, Fuse, Owners manual
|
 |
|
