Ranger, the most reliable 10 meter radios in the world.

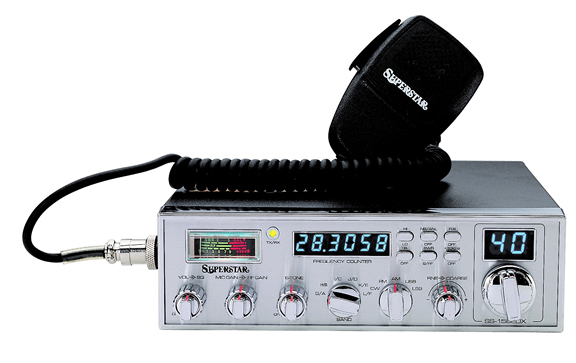

Super Star 158 EDX 10-Meter Transceiver
AM - FM - SSB




—  AM -FM - SSB and AM - FM Models —  High Sensitivity Receiver Design
—  Blue Channel/Frequency/Meter Lighting —  Variable RF Gain
—  Built-in Frequency Counter —  Roger Beep
—  Multifunction Panel Meter —  Dual Control Digital Echo Processor
$279.95

The new Super Star 158 EDX (SSB/AM /FM) amateur mobile transceiver offer exceptional value for Novice and Technician Class amateurs upgrading to Tech Plus and higher.

These new entry-level units are designed for easy, reliable and safe mobile operation. this transceiver provide excellent receiver sensitivity and multi-mode operation at a fraction of the cost of full band transceivers.

The easy-to-use frequency selection system covers the 10- meter amateur band in 6-band segments. Actual operating frequency is accurately displayed in the 6-digit LED display that’s easy to read even in bright sunlight.

A channel indicator speeds return to a popular or previously used frequency without interfering with the operator's attention to the road.

Selectable Automatic Noise Limiter (ANL) and Noise Blanker assures noise reduction during mobile operation.

Front panel  RF Gain control enable the operator to set  receiver sensitivity to match operating conditions.

Additional front panel controls assure optimum performance under widely varying conditions:

—     A +10 kHz switch complements the frequency selection system by shifting the Tx and Rx frequencies up by a known amount for increased driving safety.

—     Separate coarse and fine tuning controls for tuning above and below the selected frequency for ease of operations.

—     Easy-to-read panel meter - three-functions indicating received signal strength, transmitter power output, and antenna SWR.

Super Star 158 EDX Specifications

 General

SS 158 EDX

 Frequency Range

28.245 - 29.6655 MHz

 Modes

AM-FM-SSB

 Frequency Control

PLL Synthesizer

 Frequency Stability

0.001%

 Operating Temp. Range

- 20 ΊC to + 50 ΊC

 Input Voltage

13.8 Vdc

 Antenna Impedance

50 W

 Size (W x D x H)

7-7/8" x 10-1/8" x 2-3/8"

 Weight<

4 Lbs.









 Transmitter





 RF Power Output

AM-FM: 10W RMS
AM: 25W PEAK

 Spurious Distortion

- 50 dB

 Audio Distortion

10 %

 Frequency Response

300 to 2500 Hz

 Microphone

Dynamic









 Receiver





 AM Sensitivity for 10 dB SINAD

0.5 ΅V

 SSB Sensitivity for 12 dB SINAD

N / A

 Squelch Sensitivity

0.5 ΅V

 Image Rejection

- 55 dB

 Hum and Noise

- 40 dB

 Audio Output Power

2.5W @ 10% THD
