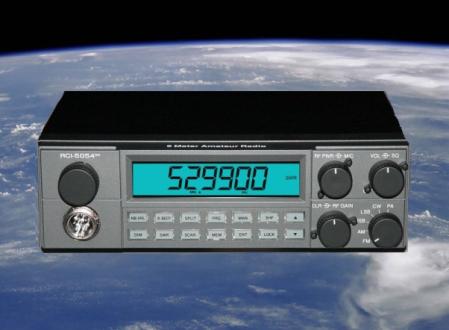

RCI-5054 6-Meter
Mobile |
|
 |
 | 50-54
MHz |
| Improved
Receiver Design |
| Variable
Output Power Control |
| Receiver
Clarifier (±2.5kHz) |
| Noise
Blanker/ANL Circuitry |
| Programmable
Repeater Offset |
|
| Large
Frequency Display with Dimmer |
| Easy
To Read Backlit Display |
| Active
Frequency Scanner |
| Ten
Programmable Frequencies |
| Frequency
Selector Lockout |
| Public
Address Feature |
|
| Ranger
Communications once again sets the performance and reliability standard
for entry level amateur mobile transceivers with the introduction of a
cost effective, multi mode, high performance 6 meter transceiver.
Announcing
the new RCI-5054DX. This new DX model is patterned after the popular 10
& 12 meter RCI-2950DX. It features a microprocessor control, and is
rated at 25W PEP SSB and 10W AM/FM/CW. Now you can upgrade your mobile Ham
capabilities with a radio that is rich in features and reasonable in cost
at a MSRP of only $329.00.
The
new 6 meter mobile radio has retained the popular operating features of
its predecessors, including programmable repeater offset (allowing splits
of up to 2 Mhz, with TX high or low) and capabilities for a CTCSS tone
option — great for increasing repeater activity on 6 meters — plus
receiver scanning for quick search of active frequencies. The units offer
three methods of frequency selection, non-volatile memory to store and
scan up to ten favorite frequencies, and front panel frequency selector
lockout.
For
those field trip contests, DXpeditions, public safety activities, or group
gatherings, the PA feature is just the answer to coordinating efforts with
the group and getting everyone's attention.
In
addition, the DX Series offers an impressive array of design and
performance improvements:
| An
enhanced receiver: designed for increased sensitivity and image
rejections. |
| A
double FET balanced mixer: for excellent receiver intermodulation
rejection. |
| Power
supply protection: and temperature compensation for superb
stability and reliability over wide temperature ranges. |
| Surface
mount components: for greater resistance to shock and vibration. |
| Refined
display lighting: for easy reading in a wide range of light
conditions. |
The
new RCI-5054DX is backed by a full 2 year warranty, including parts
and labor.
Frequency
Limitations
The RCI-5054DX was specifically designed for - and is limited to
- the 50.000 to 54.000 MHz (6 meters) portion of the amateur band. It
cannot be extended or modified to cover other frequencies outside this
spectrum. This also means that the software will not allow operation on
U.S. Army MARS frequencies of 49.7 to 49.95 MHz.
|
|
DISCONTINUED |
|
RCI-5054DX
& RCI-5054DX-100 Specifications |
|
General
|
RCI-5054DX
|
|
Frequency
Range
|
50.000
- 54.000 MHz
|
|
Tuning
Steps
|
1
MHz, 100 KHz, 10 KHz, 1 KHz, 100 Hz
|
|
Emission
|
USB,
LSB, CW, AM, FM
|
|
Frequency
Tolerance
|
0.005%
|
|
Frequency
Control
|
Microprocessor
/ Phase-Locked-Loop Synthesizer
|
|
Frequency
Stability
|
0.001%
|
|
Operating
Temperature Range
|
-10
ºC to + 50 ºC
|
|
Meter
Function
|
RF
Output, RX Signal Strength, Modulation, SWR
(LCD Display Indicates Relative Values)
|
|
Antenna
Impedance
|
50
W
|
|
Input
Voltage
|
13.8
Vdc
|
|
Microphone
|
400
W
Dynamic PTT - 6 Pin
|
|
Size
(W x D x H)
|
5054DX:
7 3/4" x 10 3/4" x 2-3/8"
5054DX-100: 7 3/4" x 9 3/4" x 2-3/8"
|
|
Weight
|
5054DX:
4 lb 3 oz
5054DX-100: 5 lb 13 oz
|
|
Shipping
Weight
|
7
lb.
|
| |
|
|
Transmitter
|
|
|
RF
Power Output
|
5054DX:
10 Watts RMS: CW / AM / FM 25 Watts: SSB (PEP)
5054DX-100: 50 Watts RMS: CW / AM / FM 100 Watts: SSB (PEP)
|
|
Current
Draw at full power
|
5054DX:
3.8
Amps
5054DX-100:
17 Amps
|
|
Modes
|
USB,
LSB, CW, AM, FM, PA
|
|
CW
Keying
|
Semi
break-in
|
|
Carrier
Suppression
|
-
50 dB
|
|
Spurious
Emission
|
-
50 dB
|
|
Antenna
Connector
|
UHF
Type, 50 W
|
| |
|
|
Receiver
|
|
|
Sensitivity
|
AM
/ CW: 0.5 µV for 10 db SINAD
FM: 0.25 µV for 12 db SINAD
SSB: 0.15 µV for 10 db SINAD
|
|
AGC
Figure of Merit
|
SSB/CW/AM:
80dB at 50mV for a 10dB change in audio output
|
|
Selectivity
|
-
55db
|
|
Rejection Ratio
|
-
65 db
|
|
Audio
Output Power
|
2.5
Watts @ 10% THD into 8 W
|
|
|
