Mobile Wireless Cellular/PCS Dual-Band 824-894MHz /
1850-1990MHz Amplifier 801201 |
 |
|
 $333.27
|
|
|
| Features |
• No physical connection to your cell phone or
cellular data card
• Works with all generations of CDMA, TDMA, GSM and high-speed
data technologies
• Passes TIA/EIA-98-E transmit tests for evaluating CDMA
cellular phones
• Power control logic ensures maximum output power is within
cellular standards
• Automatic gain control
• Automatic gain adjusting in the event of oscillation and/or
overload.
• Gain indicator lights
• Automatic shutdown on overload
• Allows multiple phones and cellular data cards to be used
simultaneously
• Maximum 3 watts output power
• DC power-supply included - AC power supply sold separately
• Slim low profile inside antenna included
(301127)
• FCC and IC Type Accepted
• MSRP: $389.95
|
Antenna and Accessory Options |
|
• NMO Mount Cellular Antenna
(301104)
• NMO Trucker Cellular Antenna
(301112)
• Mini Magnet Antenna (301113)
• Magnet Antenna
(301103)
• Trucker Mirror Mount Antenna
(301101)
• Coax Cable (RG58)
|
|
| Specifications |
|
Part Number
|
|
801201 |
|
Frequency
|
|
824-894 MHz / 1850-1990 MHz |
|
Gain
|
|
40 dB / 45 dB |
|
Max Output Power
|
|
3 watts |
|
Max RF
|
|
+35 dBm / +10 dBm |
|
Noise Figure
|
|
3 dB nominal |
|
Flatness
|
|
± 3 dB / ± 4 dB |
|
Isolation
|
|
> 90 dB |
|
Power Requirements
|
|
6 V, 3 A max |
|
Connectors
|
|
FME-Male 50 ohms |
|
Dimensions
|
|
4.5 x 3.5 x 1.25 (inches) or 11.43 x 8.9 x
3.2 (cm) |
|
Weight
|
|
1.5 lbs / 0.7 kg |
|

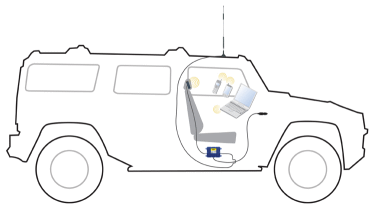

| Applications |
|
|
|
|
|
