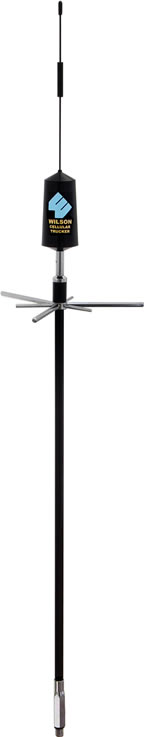

Trucker Mirror Mount
Cellular Antenna (301101) |
|
 |
|
 |
 |
|
$46.95
|
|
| Features |
• Works great on trucks, RV’s,
cars, boats, homes, or almost any other application
• No ground plane required - Built-in ground plane allows for use on
any surface - metal, fiberglass, wood, etc.
• 19 inch fiberglass mast raises antenna above obstructions
• Mounting options available for any application
• Fits standard 3/8 inch x 24 threaded mount
|
| Specifications |
|
Part Number
|
|
301101 |
|
Frequency Range
|
|
806-894 MHz / 1850-1990 MHz |
|
Impedance
|
|
50 ohms |
|
Antenna Gain
|
|
5.12 dBi 806-894 MHz / 6.12 dBi 1850-1990
MHz |
|
Radiation
|
|
Omni |
|
Polarization
|
|
Vertical |
|
Wavelength
|
|
0.9 Wavelength 806-894 MHz / 1.95
Wavelength 1850-1990 MHz |
|
Ground Plane
|
|
Built-In Ground Plane |
|
Connector
|
|
FME Female |
|
Material
|
|
Whip - Stainless Steel / Extension -
Fiberglass |
|
Coax Cable
|
|
RG58 - 10.5 feet / 3.2 meters |
|
Height
|
|
32.0625 inches / 81.45 cm |
|
Mount
|
|
Standard CB 3/8 inch x 24 Thread |
|
|
|
|
